Capacitor start capacitor run motors are a type of single-phase induction motor. They are widely used in various applications due to their high starting torque and smooth operation. In this article, we will explore what these motors are, how they work, their components, and their applications.
What is a Capacitor Start Capacitor Run Motor?
A capacitor start capacitor run motor is an electric motor that uses capacitors in both the starting and running phases. This design enhances the motor’s performance. It is often used in applications that require a high starting torque.
How Does It Work?

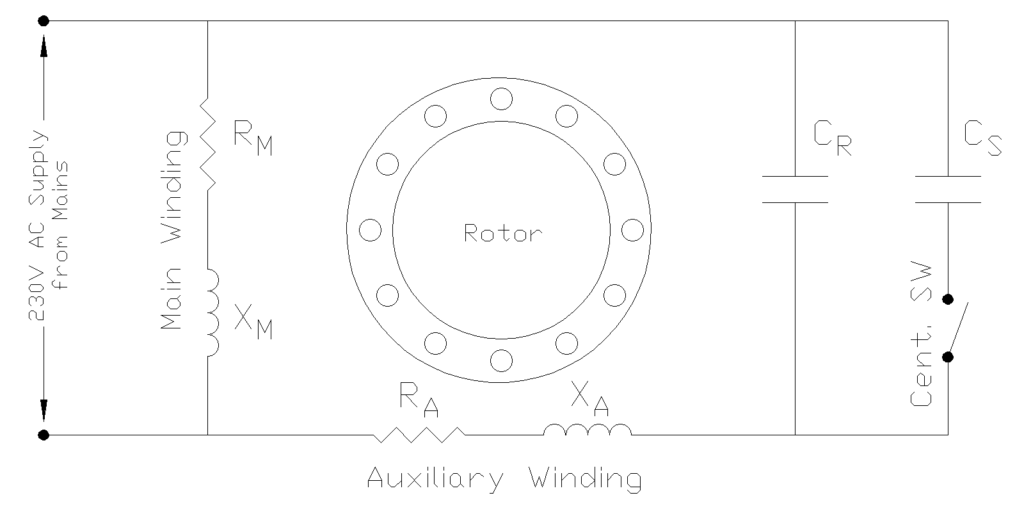

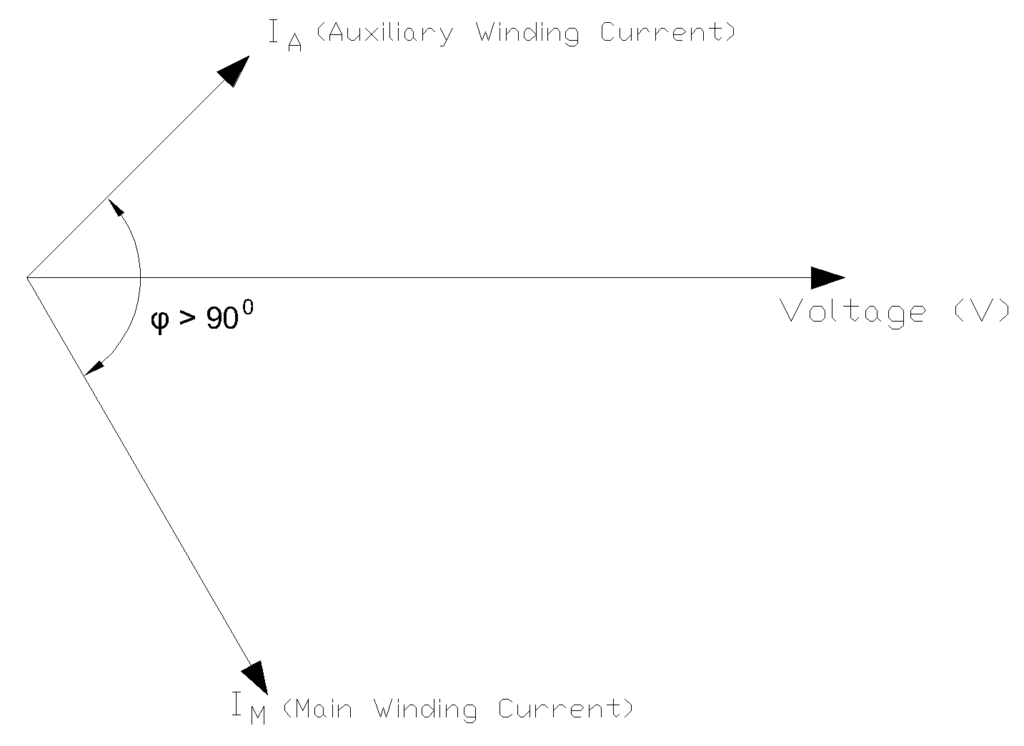

This motor type has two capacitors: a start capacitor and a run capacitor. The start capacitor provides a large phase shift during startup. This creates a high starting torque. Once the motor reaches a certain speed, the start capacitor is disconnected. The run capacitor then takes over. It provides a smaller phase shift during normal operation. This ensures smooth and efficient running.
Components
- Start Capacitor: This capacitor has a high capacitance value. It is used only during the startup phase.
- Run Capacitor: This capacitor has a lower capacitance value. It remains connected during the entire operation.
- Centrifugal Switch: This switch disconnects the start capacitor once the motor reaches a set speed.
- Stator and Rotor: These are the primary components of the motor. The stator is stationary, and the rotor rotates.
Working Principle

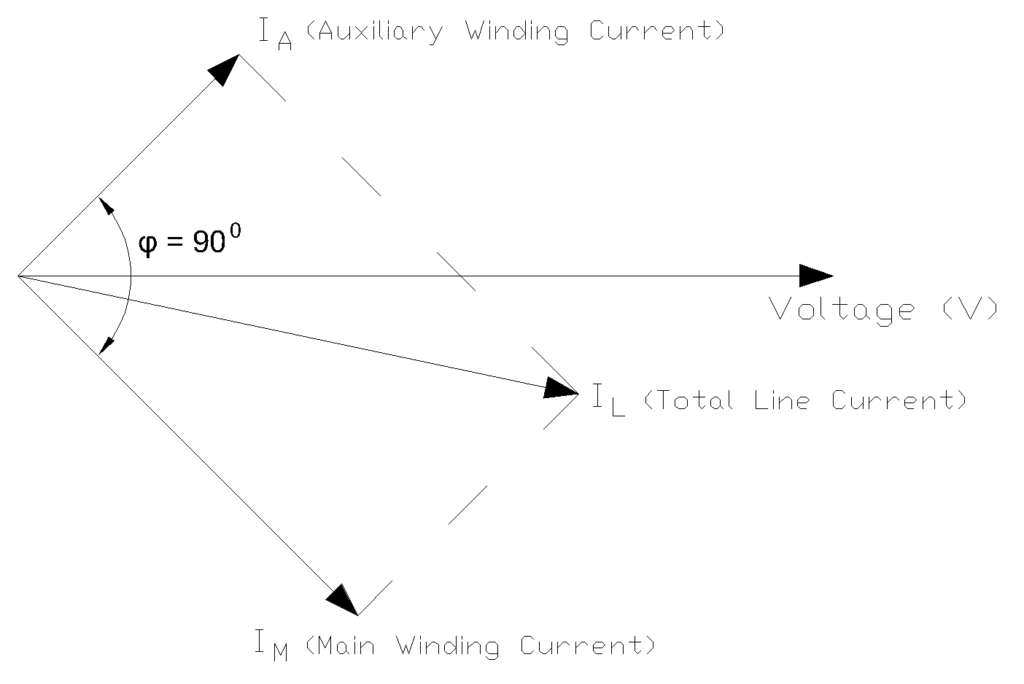

When the motor is turned on, both capacitors are connected. The start capacitor provides a high starting torque. As the motor accelerates, the centrifugal switch opens. This disconnects the start capacitor. The run capacitor remains in the circuit. It maintains a phase shift, allowing smooth operation.
Advantages
- High Starting Torque: These motors can start heavy loads.
- Smooth Operation: The run capacitor ensures smooth running and reduces noise.
- Efficiency: The motor runs efficiently with lower energy consumption.
Disadvantages
- Complexity: The addition of capacitors and switches increases complexity.
- Cost: These motors are generally more expensive than other single-phase motors.
Applications
Capacitor start capacitor run motors are used in various applications. They are ideal for devices that need high starting torque and smooth operation. Common uses include:
- Air Conditioners: They start the compressor with a high torque.
- Refrigerators: They efficiently start and run the cooling system.
- Pumps: These motors can handle the high starting torque required for pumps.
- Conveyor Belts: They ensure smooth operation and handle heavy loads.
Maintenance Tips
Maintaining these motors is crucial for their longevity. Here are some tips:
- Regular Inspection: Check capacitors and switches regularly.
- Clean the Motor: Keep the motor clean and free from dust.
- Check Connections: Ensure all electrical connections are secure.
- Lubrication: Properly lubricate moving parts to reduce wear.
Conclusion
Capacitor start capacitor run motors are reliable and efficient. They provide high starting torque and smooth operation. While they are more complex and expensive, their advantages often outweigh these drawbacks. Understanding their working principle and applications can help in choosing the right motor for your needs. Proper maintenance ensures long-lasting performance. Whether for household appliances or industrial machines, these motors are a great choice.
