Transformer efficiency stands as one of the most critical performance parameters in electrical power systems. Efficiency determines not only the economic viability of power distribution networks but also contributes significantly to global energy conservation efforts.
Modern power transformers achieve remarkably high efficiency levels, typically ranging from 95% to 99.7%, making them among the most efficient electrical machines ever developed. This exceptional performance results from decades of material science advancements, innovative design methodologies, and rigorous engineering standards that continue to evolve in response to growing energy demands and environmental concerns.
Definition and Mathematical Foundation
Transformer efficiency represents the ratio of useful output power to the total input power supplied to the device. This fundamental parameter quantifies how effectively a transformer converts electrical energy from one voltage level to another.
The basic efficiency formula is expressed as:
\(\eta=\frac{P_{out}}{P_{in}}\times 100\%\)
where \(\eta\) represents efficiency as a percentage, \(P_{out}\) denotes output power in watts, and \(P_{in}\) represents input power in watts.
Since transformers are not ideal devices, some energy is inevitably lost during the transformation process, primarily as heat dissipated through various loss mechanisms.
A more practical formulation considers the relationship between output power and losses:
\(\eta=\frac{P_{out}}{P_{out}+P_{losses}}\times 100\%\)
This expression explicitly accounts for the two primary loss categories: copper losses (variable losses dependent on load current) and iron losses (constant losses independent of load). The input power equals the sum of output power and total losses, making this formulation particularly useful for efficiency calculations based on separately measured loss components.
For a transformer operating at any fractional load \(x\) (where \(x\) represents the fraction of full load), the efficiency can be expressed as:
\(\eta_x=\frac{xScos\phi}{xScos\phi\,+\,P_i\,+\,x^2P_c}\times 100\%\)
where \(s\) represents the transformer’s rated apparent power in kVA, \(cos\phi\) is the power factor of the load, \(p_i\) denotes iron losses, and \(P_c\) represents full-load copper losses.
Why Transformers Achieve High Efficiency
Transformers consistently achieve efficiency levels exceeding 95%, with large power transformers reaching 99.7%, making them among the most efficient electrical devices. Several fundamental characteristics contribute to this exceptional performance.
- Unlike rotating electrical machines, transformers contain no moving parts, completely eliminating mechanical losses such as friction and windage. This static operation significantly reduces energy dissipation compared to motors or generators.
- The electromagnetic induction principle underlying transformer operation inherently facilitates efficient energy transfer. When alternating current flows through the primary winding, it creates a time-varying magnetic flux in the core, which induces voltage in the secondary winding through mutual inductance. This magnetic coupling mechanism avoids direct electrical connection between circuits, minimizing resistive losses that would occur in direct conversion methods.
- Modern core materials, particularly Cold Rolled Grain Oriented (CRGO) silicon steel, exhibit optimized magnetic properties that drastically reduce core losses. The grain-oriented structure aligns magnetic domains in the preferred flux direction, minimizing hysteresis losses from repeated magnetization cycles and reducing eddy current losses through high electrical resistivity. Advanced CRGO grades can achieve core losses as low as 0.9 W/kg at 1.7 Tesla and 50 Hz.
- Careful winding design using high-conductivity copper conductors with large cross-sectional areas minimizes resistive losses in the coils. The copper loss calculation \(P_{cu}=I^2R\) demonstrates how using low-resistance conductors significantly reduces energy dissipation even when carrying substantial currents. Additionally, laminated core construction interrupts eddy current paths, and insulating coatings between laminations further suppress these circulating currents.

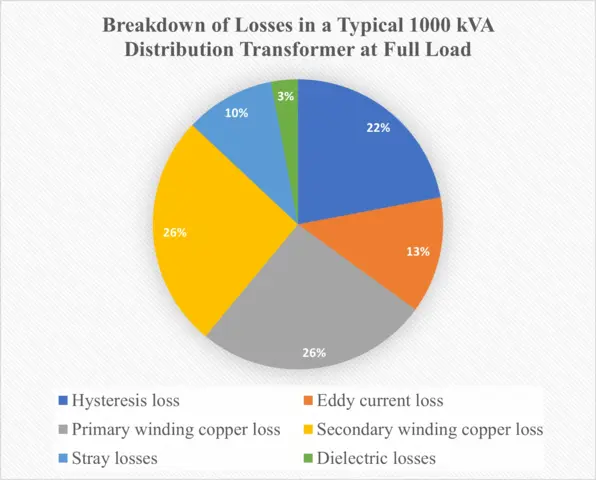

Types of Losses in Transformers
Iron Losses (Core Losses)
Iron losses, also called core losses or no-load losses, occur in the magnetic core of the transformer and remain essentially constant regardless of the load current. These losses persist whenever the transformer is energized, even with no load connected to the secondary winding, making them a continuous energy drain throughout the transformer’s operational life. Iron losses comprise two distinct components: hysteresis loss and eddy current loss, each arising from different physical mechanisms in the magnetic core material.
Hysteresis Loss results from the energy required to repeatedly magnetize and demagnetize the core material as the alternating current reverses direction each cycle. The magnetic domains within the core material must continuously realign with the changing magnetic field, and this internal molecular friction dissipates energy as heat. The Steinmetz equation quantifies hysteresis loss:
\(P_h=K_hfB^xV\)
where, \(P_h\) is hysteresis loss in watts, \(K_h\) is a material-dependent constant, \(f\) represents frequency in hertz, \(B\) denotes maximum flux density in tesla, \(x\) is the Steinmetz exponent (typically 1.6 to 2.0), and \(V\) is the core volume.
Eddy Current Loss arises from circulating currents induced within the conductive core material by the time-varying magnetic flux. According to Faraday’s law, the changing flux induces voltages within the core itself, and these voltages drive closed-loop currents (eddy currents) through the conducting steel. These currents follow paths perpendicular to the flux direction and dissipate energy according to \(I^R\) heating, generating unwanted heat in the core.
The eddy current loss formula is:
\(P_e=K_et^2f^2B^2V\)
where \(P_e\) represents eddy current loss in watts, \(K_e\) is a constant depending on core material resistivity, \(t\) is lamination thickness in meters.
For a typical 50 kVA distribution transformer, iron losses might range from 200-300 watts and remain constant whether the transformer operates at no-load or full-load conditions.
Copper Losses (Winding Losses)
Copper losses, also termed winding losses or \(I^R\) losses, result from the electrical resistance of the primary and secondary windings when current flows through them. Unlike iron losses, copper losses vary with the square of the load current, making them load-dependent or variable losses. These losses only occur when the transformer supplies load, with zero copper loss at no-load and maximum copper loss at full-load conditions.
The fundamental relationship governing copper loss is Joule’s law of heating:
\(P_{cu}=I_1^2R_1+I_2^2R_2\)
where\(P_{cu}\) represents total copper loss, \(I_1\) and \(I_2\) are primary and secondary currents respectively, and \(R_1\) and \(R_2\) denote the resistances of primary and secondary windings. This quadratic relationship with current means that doubling the load current quadruples the copper losses, significantly impacting efficiency at heavy loads.
For fractional loading conditions, where the transformer operates at \(x\) times its rated load (\(x\) being a fraction between 0 and 1), the copper loss becomes:
\(P_{cu,x}=x^2P_{cu,FL}\)
where \(P_{cu,FL}\) represents full-load copper loss.
Stray Losses and Dielectric Losses
Beyond the primary iron and copper losses, transformers experience additional minor losses that, while smaller in magnitude, contribute to overall efficiency degradation. Stray losses result from leakage flux that escapes the intended magnetic circuit and interacts with structural components such as the tank, mounting hardware, and metallic supports. This stray flux induces eddy currents in these conducting structures, dissipating energy as heat.
Dielectric losses occur in the insulating materials surrounding the conductors and between windings. These losses arise from the electrical stress on insulation when subjected to alternating electric fields, causing molecular friction and polarization losses within the dielectric material.

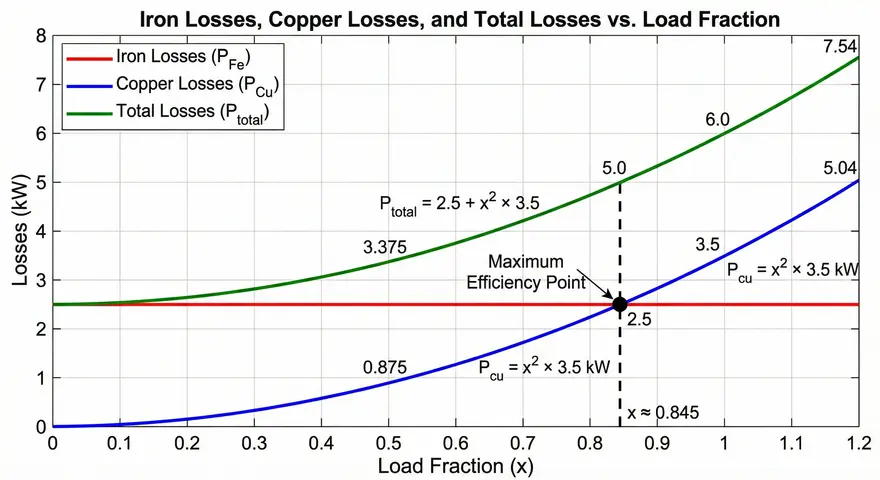

Condition for Maximum Efficiency
A transformer achieves maximum efficiency when its constant losses (iron losses) equal its variable losses (copper losses). This fundamental principle of optimal loading can be derived mathematically by examining the efficiency equation and determining the loading condition that maximizes it.
Starting with the general efficiency expression for a transformer operating at fractional load \(x\):
\(\eta=\frac{xScos\phi}{xScos\phi\,+\,p_i\,+\,x^2P_c}\)
To find the maximum, we differentiate efficiency with respect to \(x\) and set the derivative equal to zero. Since the numerator is constant for fixed \(x\) and \(cos\phi\), maximizing efficiency requires minimizing the denominator. Taking the derivative of the denominator with respect to \(x\):
\(\frac{d}{dx}(xScos\phi\,+\,P_i\,+\,x^2P_c)=Scos\phi\,-\,\frac{P_i}{x^2}\,+\,2xP_c\)
Setting this equal to zero for the minimum condition:
\(Scos\phi\,-\,\frac{P_i}{x^2}\,+\,2xP_c=0\)
Simplifying:
\(-\frac{P_i}{x^2}+2xP_c=0\)
\(2x^3P_c=P_i\)
\(x^2P_c=P_i\)
Therefore, maximum efficiency occurs when:
\(x=\sqrt{\frac{P_i}{P_c}}\)
This indicates that the load fraction for maximum efficiency equals the square root of the ratio of iron losses to full-load copper losses.
All-Day Efficiency of a Transformer
All-day efficiency, also called energy efficiency or operational efficiency, represents the ratio of total energy output to total energy input over a complete 24-hour period. The all-day efficiency formula is:
\(\eta_{all-day}=\frac{Energy\,output\, (kWh)\, 24\, hours}{Energy\,input\, (kWh)\, 24\, hours} \times 100\%\)
This can be further expanded to account for both constant and variable losses over the 24-hour period:
\(\eta_{all-day}=\frac{\sum (kW\, output\, \times\, hours)}{\sum(kW\, output\, \times\, hours)\,+\,(P_i\,\times\, 24)+\sum(P_{cu}\,\times \,hours)}\times 100\%\)
where \(P_i\) represents constant iron losses present for all 24 hours, and \(\sum(P_{cu}\,\times\, hours)\) represents the total copper loss energy over the day, varying with the load pattern.
Calculation Example of All Day Efficiency of a Transformer
To illustrate all-day efficiency calculation, consider a 400 kVA distribution transformer with the following characteristics: Full-load iron losses = 2.5 kW, Full-load copper losses = 3.5 kW, and the following 24-hour load cycle:
- 6 hours at 300 kW, power factor 0.8
- 10 hours at 200 kW, power factor 0.7
- 4 hours at 100 kW, power factor 0.9
- 4 hours at 50 kW, power factor 0.95
First, calculate the rated full-load kW output:
Rated kVA = 400 kVA
For each loading period, determine the fraction of full load:
Period 1 (6 hours, 300 kW at 0.8 pf):
- \(kVA = 300/0.8 = 375\, kVA\)
- Load fraction \(x_1=375/400=0.9375\)
- Copper loss = \((0.9375)^2\times 3.5=3.08\, kW\)
- Energy output =\(300\times 6=1800\, kWh\)
- Copper loss energy =\(3.08\times 6=18.48\,kWh\)
Period 2 (10 hours, 200 kW at 0.7 pf):
- kVA = \(200/0.7 = 285.7\, kVA\)
- Load fraction\(x_2=285.7/400=0.714\)
- Copper loss =\((0.714)^2\times 3.5=1.78 \,kW\)
- Energy output = \(200\times 10=2000\, kWh\)
- Copper loss energy =\(1.78\times 10=17.8 \,kWh\)
Period 3 (4 hours, 100 kW at 0.9 pf):
- kVA = \(100/0.9 = 111.1\, kVA\)
- Load fraction \(x_3=111.1/400=0.278\)
- Copper loss = \((0.278)^2\times 3.5=0.27\,kW\)
- Energy output = \(100\times 4=400\, kWh\)
- Copper loss energy = \(0.27\times 4=1.08 kWh\)
Period 4 (4 hours, 50 kW at 0.95 pf):
- kVA = \(50/0.95 = 52.6 \, kVA\)
- Load fraction \(x_4=52.6/400=0.132\)
- Copper loss = \((0.132)^2\times 3.5=0.06\,kW\)
- Energy output = \(50\times 4 =200\, kWh\)
- Copper loss energy = \(0.06\times 4= 0.24 kWh\)
Total energy calculations:
- Total energy output \(= 1800 + 2000 + 400 + 200 = 4400 \,kWh\)
- Total iron loss energy \(= 2.5 \,kW \times 24\, hours = 60\, kWh\) (constant for entire 24 hours)
- Total copper loss energy \(= 18.48 + 17.8 + 1.08 + 0.24 = 37.6\, kWh\)
- Total loss energy \(= 60 + 37.6 = 97.6 \,kWh\)
All-day efficiency:
\(\eta_{all-day}=\frac{4400}{4400+97.6}\times 100=\frac{4400}{4497.6}\times 100 = 97.83\%\)
This all-day efficiency of 97.83% is lower than the transformer’s full-load conventional efficiency (which would be approximately 98.2%), reflecting the reality that iron losses remain constant throughout the 24-hour period while the transformer operates at partial load most of the time.
Factors Affecting Transformer Efficiency
1. Load Conditions

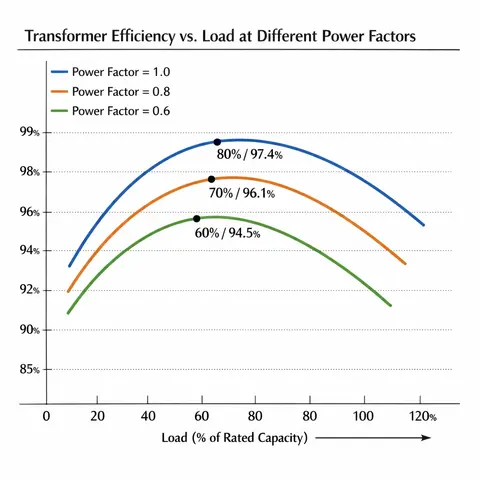

The load magnitude profoundly influences transformer efficiency, with the relationship exhibiting a characteristic curve shape that peaks at the optimal loading point where copper losses equal iron losses. At very light loads (10-30% of rated capacity), efficiency is relatively low because the constant iron losses dominate while useful output power is small. As loading increases toward the optimal point (typically 60-80% for distribution transformers, 80-100% for power transformers), efficiency rises rapidly as output power increases faster than the variable copper losses.
Beyond the optimal loading point, efficiency gradually decreases as copper losses grow with the square of current while output power increases only linearly with load. At overload conditions (beyond 100% rated capacity), efficiency drops more noticeably as excessive copper losses and secondary effects like increased core saturation losses become significant.
Power factor significantly impacts efficiency for a given apparent power (kVA) loading. For example, a transformer delivering 80 kW at unity power factor (80 kVA) draws less current and experiences lower copper losses than the same transformer delivering 80 kW at 0.8 power factor (100 kVA). Consequently, for constant real power output, efficiency decreases as power factor decreases due to increased current and associated copper losses.
Maximum efficiency occurs at unity power factor for any given loading level, and efficiency decreases progressively as power factor declines. This relationship emphasizes the importance of power factor correction in industrial installations where inductive loads (motors, transformers) naturally present lagging power factors.
2. Operating Temperature
Temperature profoundly affects transformer efficiency through its influence on both copper and iron losses. Winding resistance increases approximately 0.4% per degree Celsius for copper conductors, following the temperature coefficient relationship. As the transformer heats up during operation, this resistance increase directly raises copper losses according to \(P_{cu}=I^2R\). A transformer operating at 75°C above ambient experiences roughly 30% higher winding resistance compared to 20°C reference temperature, significantly increasing copper losses at elevated temperatures.
3. Core Material Selection
Core material selection represents one of the most critical design decisions affecting transformer efficiency, as it directly determines iron losses which occur continuously whenever the transformer is energized. Cold Rolled Grain Oriented (CRGO) silicon steel has emerged as the industry standard for power and distribution transformers due to its superior magnetic properties and dramatically reduced core losses compared to earlier materials.
CRGO steel’s grain-oriented structure aligns magnetic domains preferentially in the rolling direction, corresponding to the flux path in the finished transformer core. This alignment reduces hysteresis losses by minimizing the energy required to reorient magnetic domains during each magnetization cycle. The addition of 2-4% silicon increases electrical resistivity, suppressing eddy current losses. Modern CRGO grades achieve specific core losses of 0.9-1.1 W/kg at 1.7 Tesla and 50 Hz, representing a dramatic improvement over the 2-4 W/kg typical of older non-oriented steels.
Amorphous metal cores represent a newer alternative offering even lower core losses than CRGO steel. The non-crystalline atomic structure of amorphous metal eliminates grain boundaries, drastically reducing hysteresis losses. Amorphous core transformers can achieve 60-80% lower no-load losses compared to conventional CRGO units of equal rating. A 100 kVA CRGO transformer with 145W no-load losses might be replaced by an equivalent amorphous unit with only 65W no-load losses, representing a 55% reduction.
4. Design and Construction Quality
Transformer design quality significantly impacts efficiency through numerous detailed decisions affecting both copper and iron losses. Winding design involves selecting conductor material (copper versus aluminum), cross-sectional area, number of turns, and physical arrangement. Larger conductor cross-sections reduce resistance and copper losses but increase material cost and physical size. The optimal balance depends on the application’s efficiency requirements and economic constraints.
High-conductivity copper offers superior performance compared to aluminum, with approximately 60% lower resistance for equivalent current capacity. However, copper’s higher cost drives some manufacturers to use aluminum conductors in cost-sensitive applications, accepting somewhat higher losses.
Core construction quality affects magnetic circuit performance and losses. Precise cutting and stacking of core laminations minimizes gaps in the magnetic circuit, reducing flux leakage and associated stray losses. Lamination thickness (typically 0.23-0.35 mm for power transformers) and insulation coating quality directly impact eddy current losses. Tighter laminations with better insulation coatings reduce eddy currents but require more careful manufacturing.
Core joint design where laminations connect influences losses and magnetizing current. Step-lap joints, where successive laminations overlap in staggered patterns, provide better magnetic continuity than simple butt joints, reducing localized flux concentrations and associated losses. Premium transformers employ carefully engineered step-lap patterns, while economy designs may use simpler butt joints.
Cooling system design impacts efficiency by managing operating temperature. Oil-immersed transformers use circulating oil and external radiators to remove heat. Radiator design, oil circulation patterns, and oil quality all affect heat removal efficiency. Forced oil and forced air cooling (FOA, OFAF) enhance heat removal for large power transformers, maintaining lower temperatures and higher efficiency under heavy loading.
Insulation system quality affects dielectric losses and reliability. While dielectric losses are typically small (1-2% of total losses), poor insulation quality can lead to excessive losses or premature failure. High-quality insulating materials with low dissipation factors minimize dielectric losses while providing reliable electrical isolation.
Conclusion
As global electricity demand continues growing while environmental concerns intensify, transformer efficiency becomes increasingly important. Even small percentage improvements in transformer efficiency, multiplied across millions of installed units worldwide, yield enormous collective energy savings. Engineers, utilities, and policymakers must continue prioritizing efficiency in transformer procurement, design standards, and operational practices to maximize the economic and environmental benefits of these essential power system components.
